📌LAB POINTS

• next generation portable USB audio + MIDI interface
• quick + compact connectivity to your PC, Mac or other device w/ USB-C

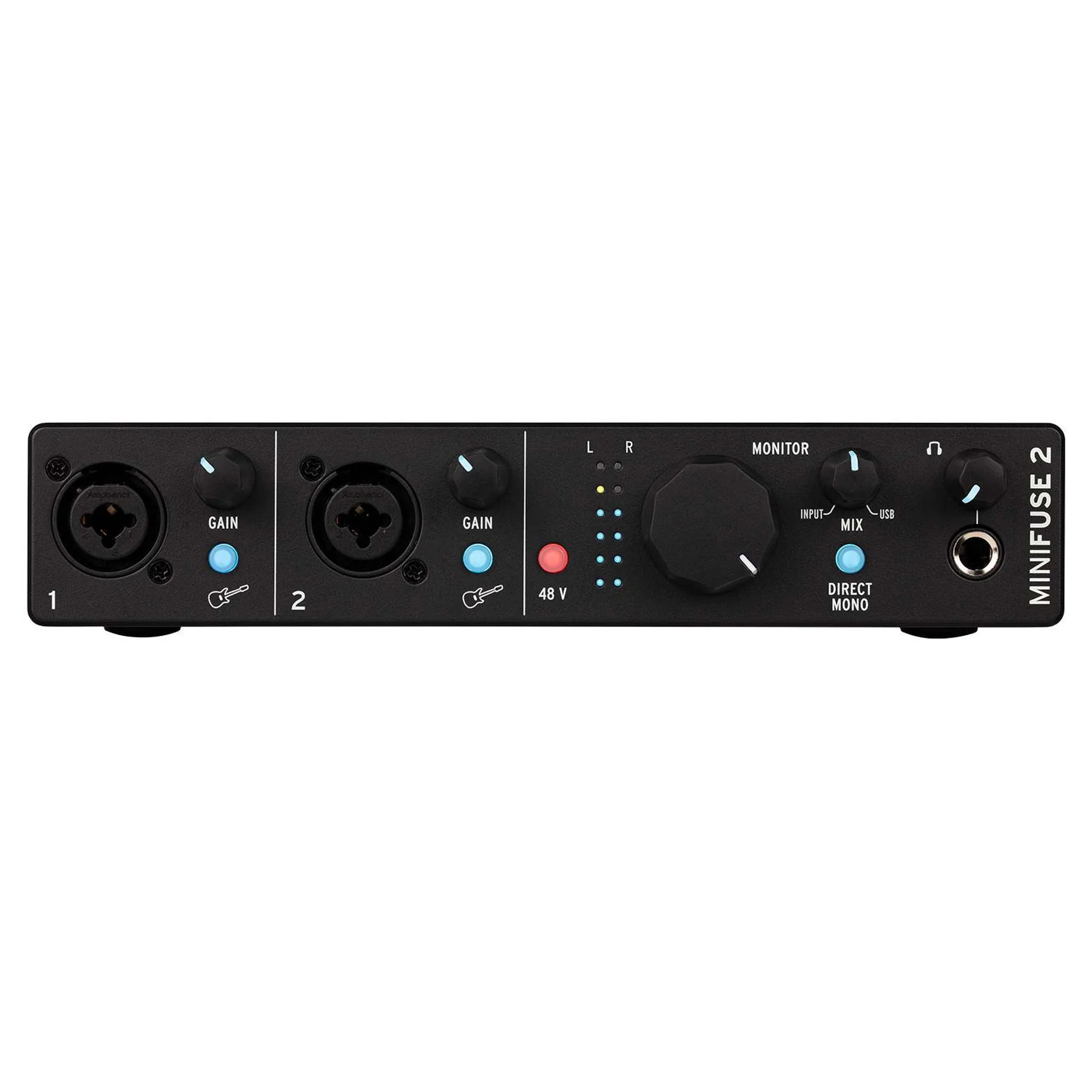

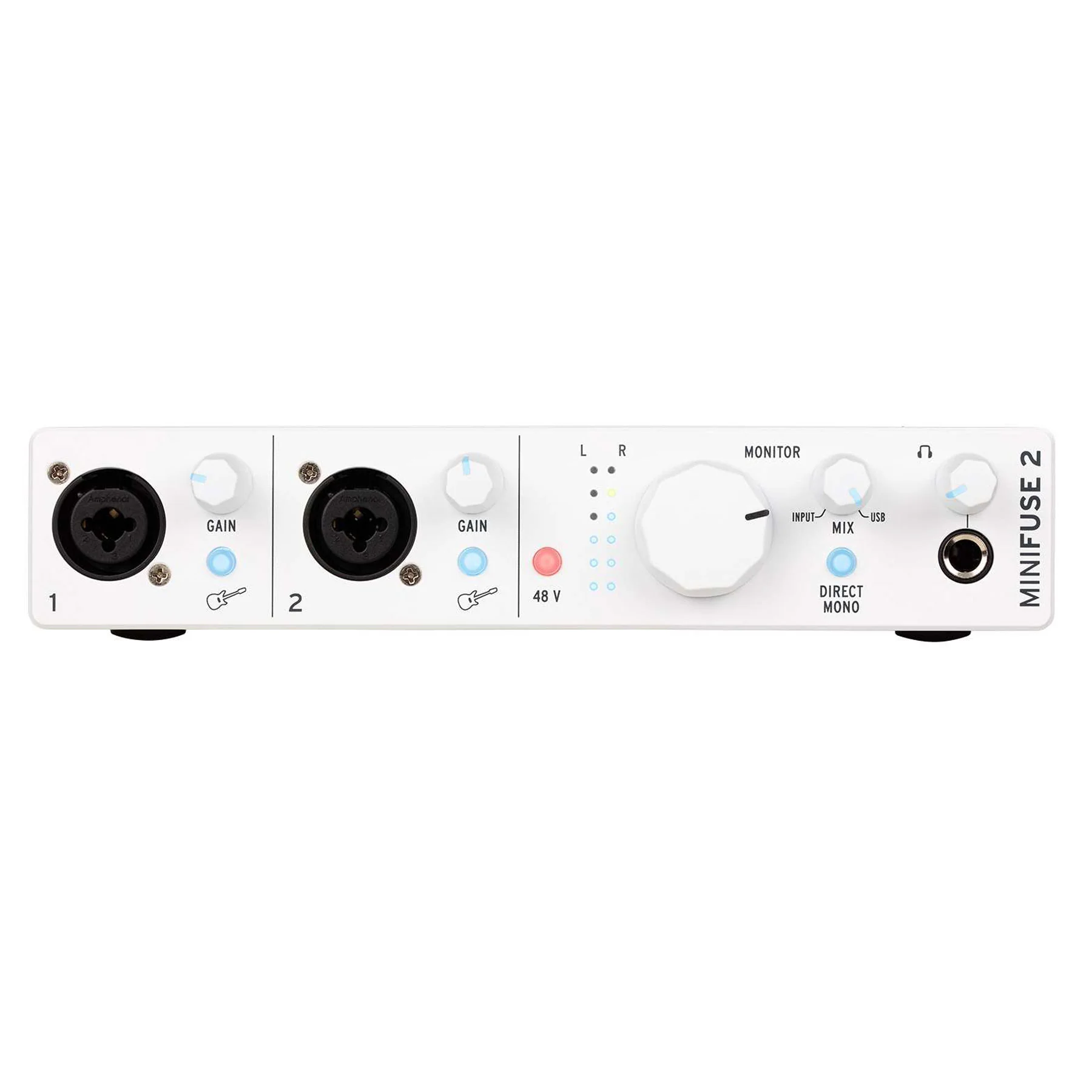

• (2) combo XLR / 1/4" instrument/mic inputs for recording w/ individual gain control + 48V phantom power switch

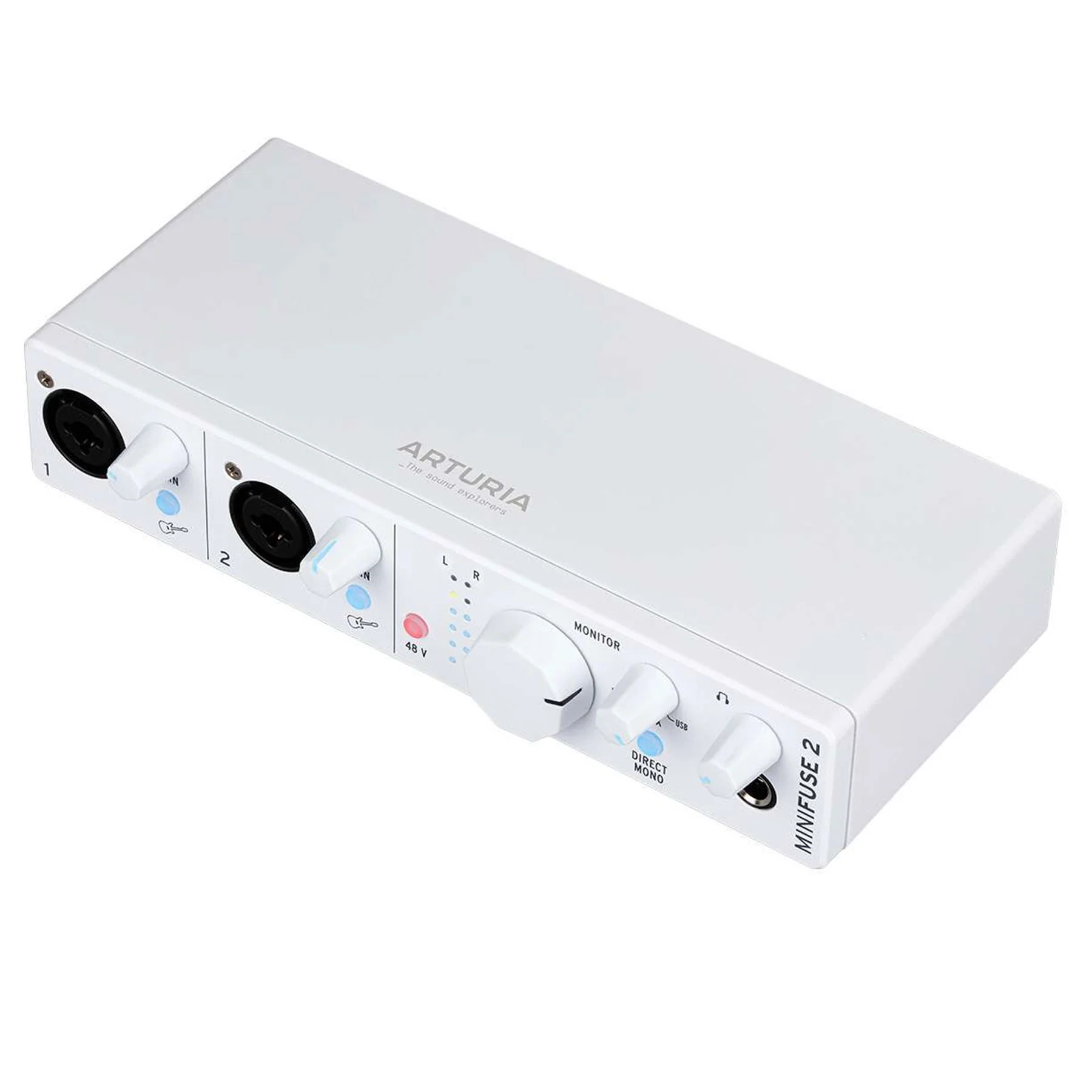

• lightweight portable design w/ durable aluminum casing
• monitor inputs, outputs, settings, + firmware updates w/ MiniFuse Control Center app

• real-time color coded VU meter for monitoring project volume

• large front-panel output level control knob
• monitor mix knob controls balance between input signal and signal from connected computer
• 1/4" headphone output w/ volume knob
• extra USB-A port for charging or powering an additional device to save on computer socket space

• 5 year manufacturer's warranty

"MiniFuse 2 is a next-gen audio & MIDI interface that gives you everything you need to make music and audio your own way. With unmatched sound quality, smart connectivity, and an exclusive music-making software pack, this is a portable audio companion evolved." - Arturia

🔎TECH SPECS

• inputs: (2) XLR/ 1/4" combo instrument / mic input

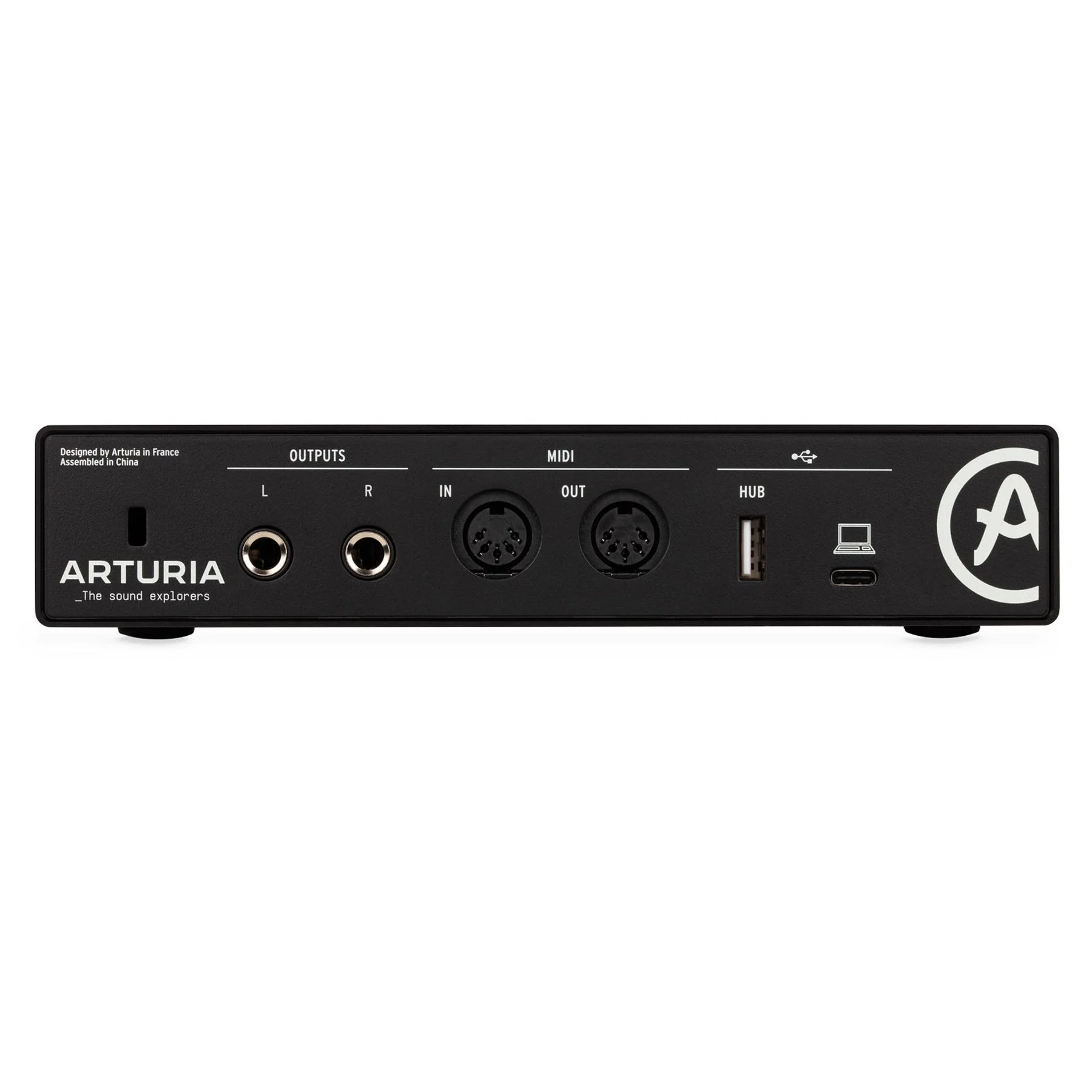

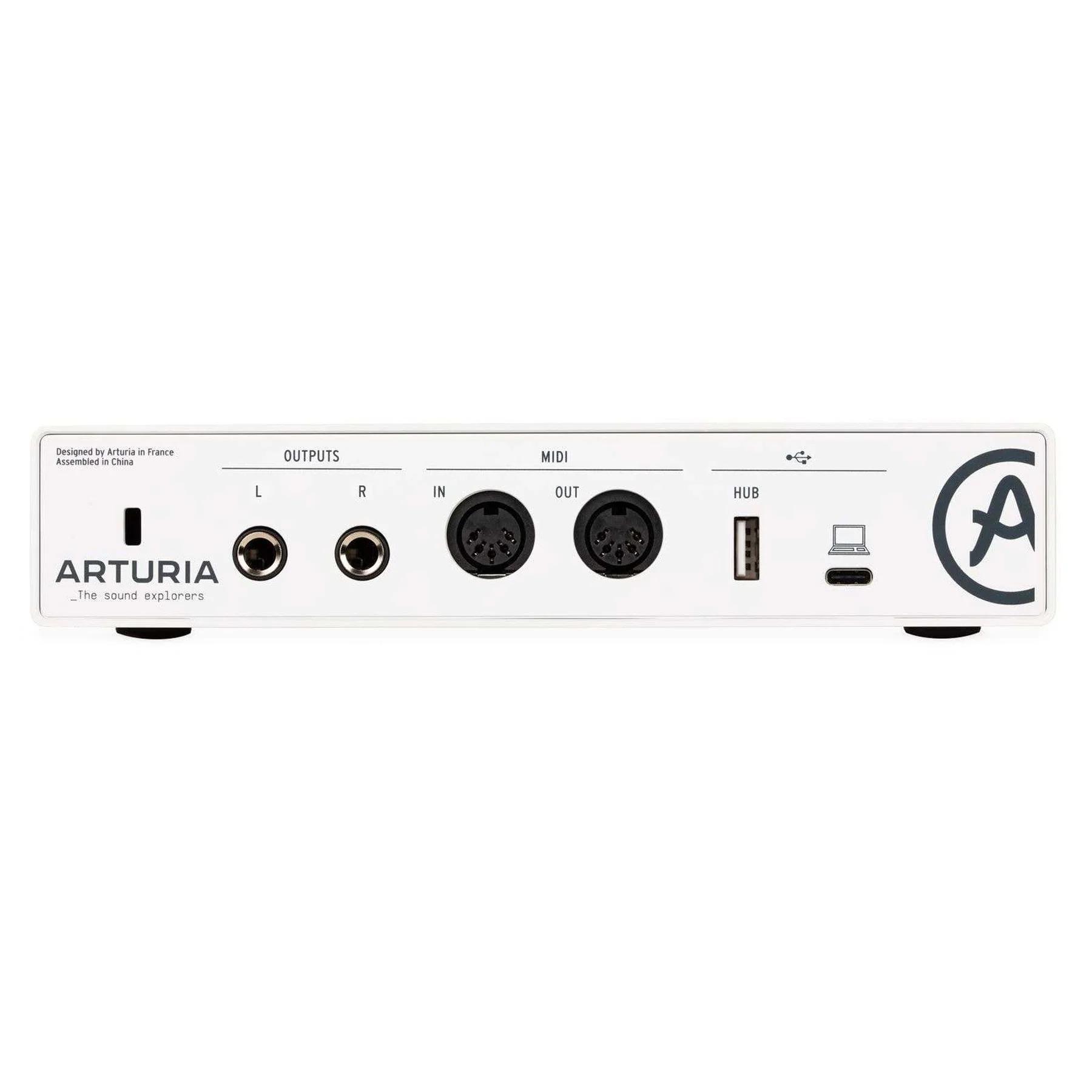

• outputs: (2) 1/4" monitor output, 1/4" headphone output
• MIDI: Din In / Out
• Input impedance: 16kΩ line / 1MΩ instrument / 2.5kΩ mic
• Maximum input level: +22dBu line / +11.5dBu instrument / +9dBu mic
• Gain range: 56dB
• Frequency response 20Hz to 20kHz: +/-0.05dB (min gain) line / +/-0.06dB (min gain) instrument + mic
• Dynamic input range   (A-weighted,  typical): 110dB
• THD+N @ 1kHz (un-weighted,  typical): -100dB line + mic / -91dB instrument
• Mic Preamp Equivalent Input Noise (A-weighted,  typical): -129dB
• Output impedance: 94Ω speakers / 10Ω headphones
• Maximum output level: +12dBu speakers / +11.4dBu headphones
• Frequency response 20-20kHz: +/-0.09dB
• Dynamic output range (A-weighted, typical): 107.5dB speakers / 104dB headphones
• THD+N @ 1kHz: -101dB typical (un-weighted)
• Headphones Power @ 33ohm: 137mW

• Supported sample rates: 44.1kHz, 48kHz, 88.2 kHz, 96kHz, 176.4kHz, 192 kHz
• dimensions: 7.9" x 3.9" x 1.65" / 200 x 100 x 43mm
• weight: 1.1 lbs. / 0.431 Kg

📦COMES WITH

• Ableton Live Lite

• Analog Lab Intro
• Arturia FX
• Native Instruments Guitar Rig 6 LE
• Auto-Tune Unlimited
• Splice Creator Plan
