Audio-Technica: AT-PEQ30 Phono Preamp
šLAB POINTS
- standaloneĀ phono stageĀ forĀ use with an existing turntable setup or as an upgrade to a turntable's built-in preamp
- selectable moving magnetĀ / moving coilĀ input with fixed gainĀ + impedance, compatible with a wide range of MMĀ / MC cartridges
- high-quality FET inputs ensure a low-noise signal when incorporated with a negative feedback-type phono equalizer circuit
- precision components provide excellent RIAA response
- all-metal construction enclosure provides superior isolation from radio and electronic noise interference
- high quality buildĀ optimized for low noise and minimum distortion

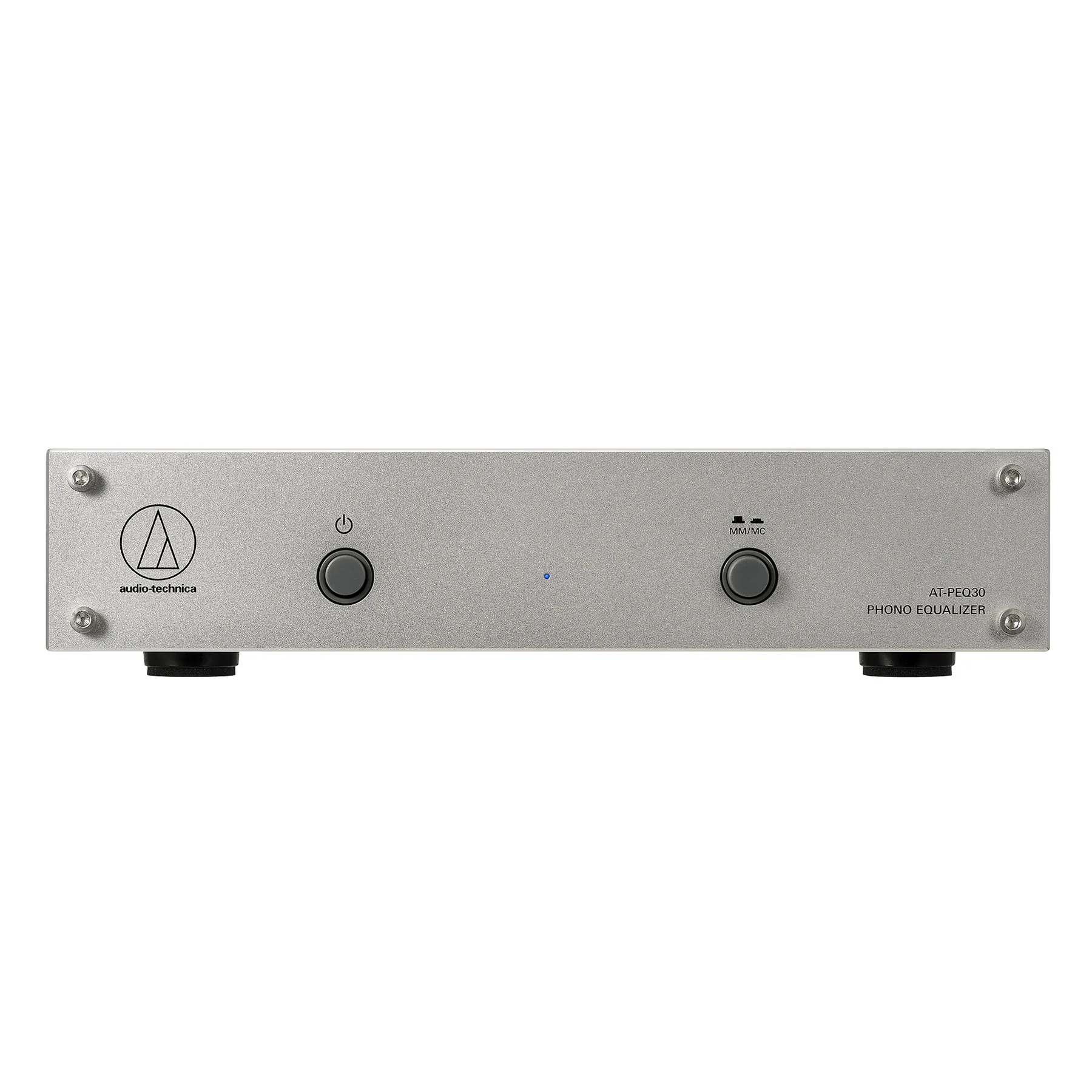

- machined aluminum front panel
- gold-plated input/output RCA connectors
šTECH SPECS

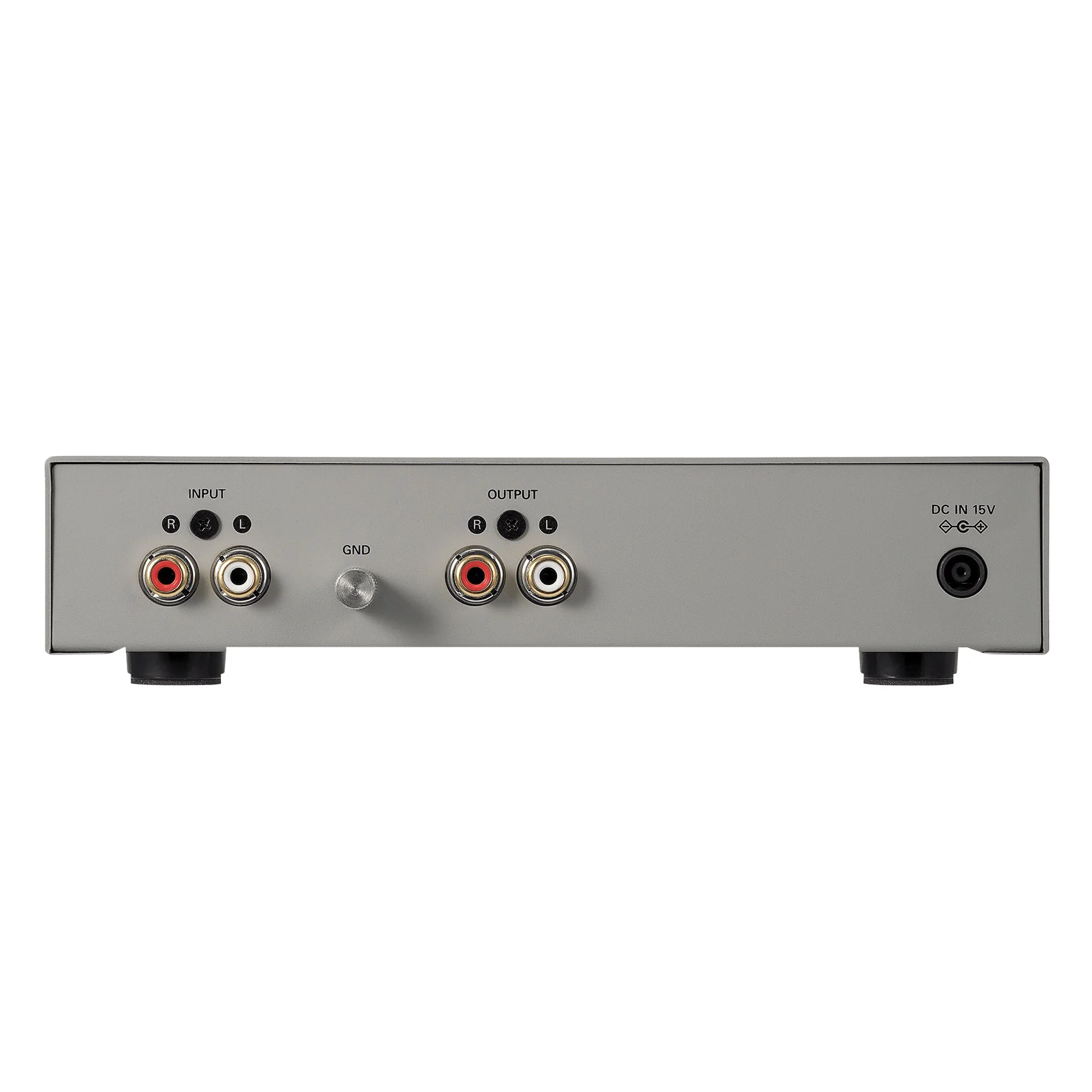

- RCA input / RCA output w/ grounding post
- input impedence:Ā MM type: 47 kiloohms / MC type: 120 ohms
- input sensitivity: MM type: 4.5 mV / MC type: 0.28 mV
- rated output:Ā MM type: 250 mV / MC type: 250 mV
- gain:Ā MM type: 35 dB / MC type: 59 dB
- signal-to-noise ratio:Ā MM type: 100 dB / MC type: 74 dB
- power supply:Ā DC 15 V, 1.2 A
- weight: 1.96 lbs / 0.89 kg
- dimensions: 1.85" x 7.78" x 4.94" /Ā 47 xĀ 197.5Ā x 125.5mm
š¦COMES WITH
- power supply
