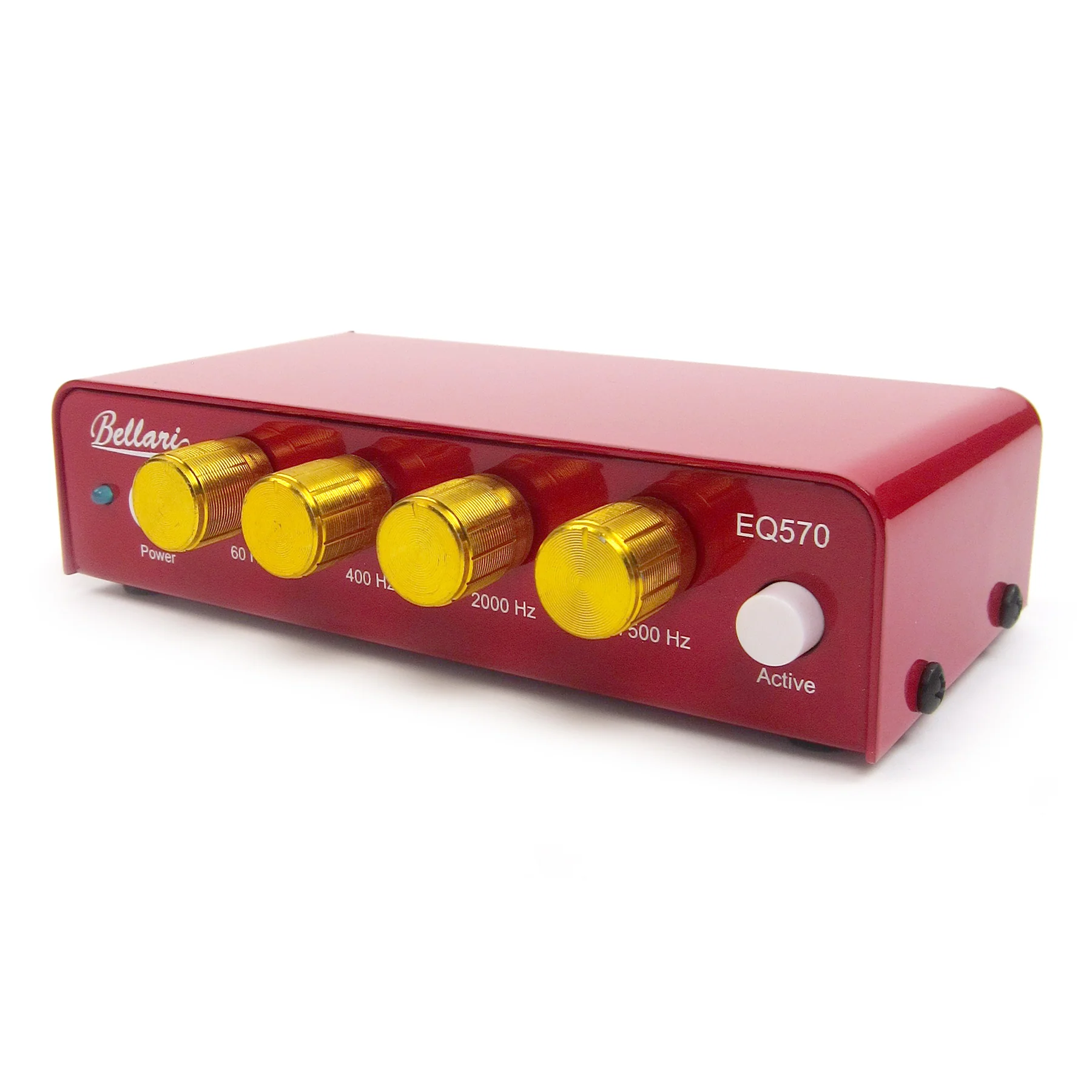

Bellari: EQ570 Four Band Audio Equalizer
📌LAB POINTS
- 4-band equalizer w/ rotary frequency controls
- use to improve + fine tune audio signal from any RCA source - phono, DAC, CD, phone, tablet, or entire hifi system
- when used w/ vinyl, signal must be amplified to line level (via phono preamp or line-level turntable)
- true bypass function - "Active" button allows you to bypass EQ to output the original unaltered signal
- solid construction w/ all metal casing, gold-plated RCA inputs + outputs
- hand built in Salt Lake City, Utah
"The 2019 EQ570 is a solid, well built four-band EQ with extremely low phase shift, and gradual curve filters that make it one of the most musical sounding EQ’s we have ever built." - Bellari
🔑KEY FEATURES
- adjustment: +/-12dB for 60Hz and 7500Hz / +/-6dB for 400Hz and 2000Hz
- input Impedance: 47k
- output impedance: 47 ohms
- frequency response: 5Hz to 154kHz
- THD: .003% @ 1KHz
- S/N Ratio: >100 dB unweighted
- dimensions: 5.5"w x 3.5"d x 1.25"h / 140 x 89 x 32mm
- weight: .8 lbs / 362g
📦COMES WITH
- power supply
View this post on Instagram@bellariaudio filling a big gap in the boutique EQ market w/ the EQ570: customizable 4-band EQ fine tunes audio signal from any source at entry level price point ($119) ╲➸link in bio╲ #ttlgear #bellari #eq570
